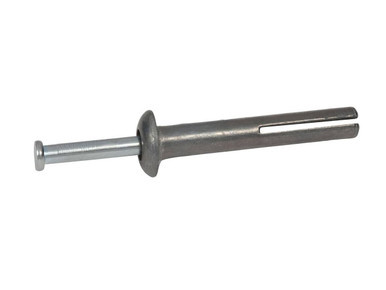

CONFAST - 1/4" x 3" CONFAST American Made Hammer Drive Anchor (ea)
These anchors come packaged with 100 pcs per box and are designed for fastening items to concrete.
- Bit size 1/4"
- Minimum embedment 3/4"
- Do not use in vibratory loads
- 1/4" inch diameter x 3" inch long
- Spacing must be a minimum of 10 anchor diameters
Products specifications
| Bit Size | 1/4" |
| Minimum Embedment | 3/4" |
| Box Qty | 100 |
| Diameter | 1/4" |
| Length | 3" |
| Material | Zamac |
| Brand Name | CONFAST |
* Values shown are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1 or 25% is generally accepted as a safe working load
Applications
The anchor is made from American Made - Zamac. This anchor is designed for use in
Hole Diameter/Bit Diameter
The anchor requires a 1/4" hole to be drilled in the base material (). The hole should be drilled with carbide tipped bit that meets ANSI standards and used in a hammer drill.
Diameter of Anchor
The diameter of the anchor is 1/4".
Length Anchor
The length of the anchor is 3"
Minimum Embedment
The minimum anchor embedment into the concrete is 3/4". Therefore, the anchor must be installed so that a minimum of 3/4" of the anchor is embedded into the concrete.
Depth of Hole
The depth of the hole that is required for the anchor should be a minimum of 1/2" deeper than the anchor will penetrate the concrete. This will allow space for dust created during the installation process to fall, which will prevent the anchor from bottoming out in the hole before full penetration into the concrete.
